Metallographic Sample Cutting Machine High Speed Operation High Precision

Name: Metallographic Sample Cutting Machine High Speed Operation High Precision
Brand: TMTeck
Price: 1 USD

Brand Name : TMTeck

Model Number : TMGTQ-150

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100pcs/month

Delivery Time : 7-15 days

Packaging Details : 1pc/carton box

Price : Negotiation

feed rate : 0.01 ~ 3.00mm / s (adjusted in steps of 0.01)

wheel speed : 500 ~ 5000rpm

the maximum stroke : Y axis 200mm

cut sheet size : 200*32*1mm

Contact Now

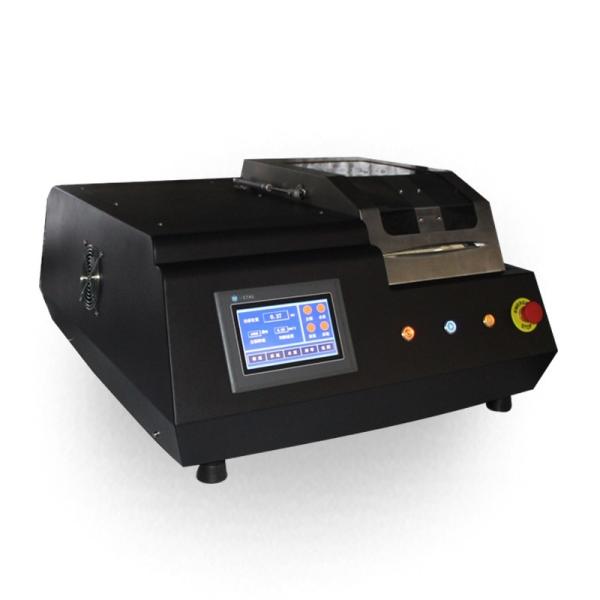

TMGTQ-150 High speed Precision metallographic sample Cutting Machine

cutting machine, precision sample cutting machine price, high speed precision cutter, china supplier

Features and Applications:

* High positioning accuracy

* Wide speed range

* Strong cutting capacity

* Internal circulating cooling system

* Feed rate can be preset

* Menu control, touch screen and LCD display

* Automatic cutting

* Closed cutting chamber

GTQ-5000 Precision cutting machine is suitable for metal, electronic components, ceramics, crystal, carbide, rock samples, mineral samples, concrete, organic materials, biomaterials (teeth, bones) and other materials for precision cutting without distortion. It is one of the ideal industrial and mining equipment, research institutes, producing high-quality samples.

Technical Parameter:

feed rate	0.01 ~ 3.00mm / s (adjusted in steps of 0.01)
wheel speed	500 ~ 5000rpm
the maximum stroke	Y axis 200mm
cut sheet size	200321mm
cutting power	1100W
Power	220V 50Hz
Dimension	700mm720mm410mm (LWH)
