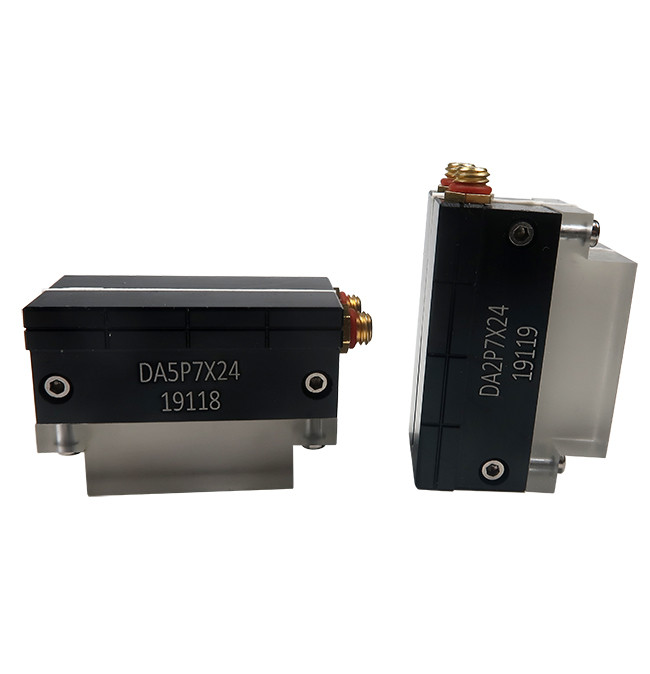

high sensitivity DA series Dual Ultrasound Probe With Replacement Delay Lines

  • 1
  • 2
  • 3

Brand Name : TMTeck

Model Number : DA

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100pcs/ one week

Delivery Time : 4-6 work days

Packaging Details : Carton

frequency : 2.25 or 5Mhz

crystal size : 7x12mm or 7x14mm

probe type : dual crystal

model : DA

certification : CE

origin : China

Contact Now

high sensitivity DA series dual probes with replacement delay lines

Dual Element Transducers with Rectangular Dual Element and Dual Microdot Connector – General Purpose

Recommended for more rugged applications

Applications requiring greater coverage

Delay lines and cross-talk barriers are replaceable

High temperature delay lines available

Microdot connectors

Features:

Dual element transducers- These transducers produce improved near-surface resolution when compared with normal single element contact transducers. Used on instruments having isolated pulser/receiver connections(through-trans-mission mode on many instruments), each of the elements functions indepen-dently, one as a transmitter,the other as a receiver. Having a remarkable combination of sensitivity,penetration and resolution,dual element transducers are used in precision thickness gaging applications,and for detection of corrosion,erosion,pits and small internal laminar or elongated flaws.

Model frequency Crystal size(mm) Crystal size(inch)
DA2.25P7X12 2.25Mhz 7*12mm equv. 1/4*1/2 inch
DA5P7X12 5Mhz 7*12mm equv. 1/4*1/2 inch
DA2.25P7X24 2.25Mhz 7*24mm equv. 1/4*1.00 inch
DA5P7X24 5Mhz 7*24mm equv. 1/4*1.00 inch
DA1P7x24 1Mhz 7*24mm equv. 1/4*1.00 inch
DA3.5P7x24 3.5Mhz 7*24mm equv. 1/4*1.00 inch
DA1P7x12 1Mhz 0.5X0.5 inch 0.5x1 inch
DA3.5P7x12 3.5Mhz 0.5X0.5 inch 0.5x1 inch

high sensitivity DA series Dual Ultrasound Probe With Replacement Delay Lines
