Ndt 30 Fbh Resolution Block Inch 1018 Carbon Steel

Name: Ndt 30 Fbh Resolution Block Inch 1018 Carbon Steel
Brand: TMTeck
Price: 1 USD

Ndt 30 Fbh Resolution Block Inch 1018 Carbon Steel Manufactures

Brand Name : TMTeck

Model Number : 30 FBH Resolution

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, Western Union,

Supply Ability : 20 pieces in two week

Delivery Time : 5-8 working days

Packaging Details : Carton

Type : NDT Accessories

Material : 1018 Steel, Stainless Steel, Aluminum

High Light : Ndt Ultrasonic Test Block

Contact Now

30 FBH RESOLUTION BLOCK INCH

"C" DIM. HOLE NO. AND DIAM.	"B" DIM. HOLE DEPTH REFERENCE	MTD +-.015
NO.3 3/64	1.450	.050
NO.3 3/64	1.425	.075
NO.3 3/64	1.400	.100
NO.3 3/64	1.300	.200
NO.3 3/64	1.200	.300
NO.3 3/64	1.100	.400
NO.3 3/64	1.000	.500
NO.3 3/64	.750	.750
NO.3 3/64	.500	1.000
NO.3 3/64	.250	1.250
NO.5 5/64	1.450	.050
NO.5 5/64	1.425	.075
NO.5 5/64	1.400	.100
NO.5 5/64	1.300	.200
NO.5 5/64	1.200	.300
NO.5 5/64	1.100	.400
NO.5 5/64	1.000	.500
NO.5 5/64	.750	.750
NO.5 5/64	.500	1.000
NO.5 5/64	.250	1.250
NO.8 8/64	1.450	.050
NO.8 8/64	1.425	.075
NO.8 8/64	1.400	.100
NO.8 8/64	1.300	.200
NO.8 8/64	1.200	.300
NO.8 8/64	1.100	.400
NO.8 8/64	1.000	.500
NO.8 8/64	.750	.750
NO.8 8/64	.500	1.000
NO.8 8/64	.250	1.250

NOTES:
1. Applicable specifications:ASTM E127 - 20
2. Alloy Code - CS -1018 low carbon steel
SS - Type 304 Stainless Steel
AL- 7075 T6 Aluminum
OT - Other (Specify)
3. All surfaces 63ra or better unless noted otherwise
4. Hole tolerance ±.0005 under 1/16 - ±.001 holes over 1/16
5. Flat bottom hole must be straight and perpendicular to test
surface within 0º-20' - Hole bottom flat within .001/.125 inches
6. C-bore min 1/8 larger than test hole diameter and .063 deep.
Plug hole for tight seal with similar material.
7. Dimension tolerance ±.005 unless otherwise specified.

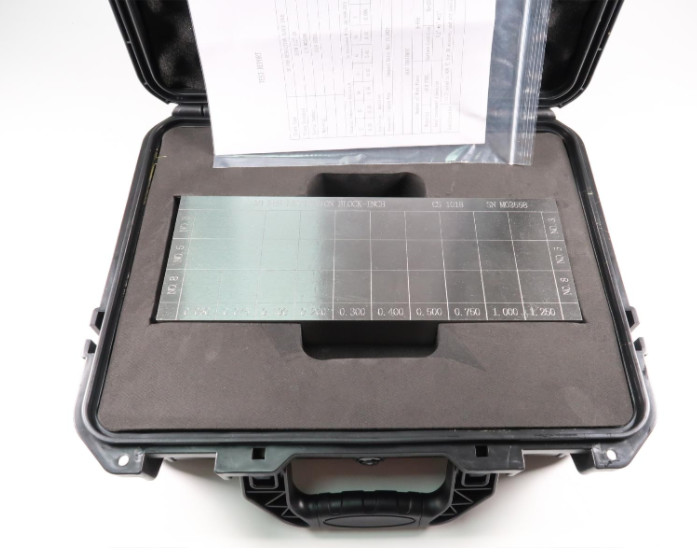

Package including

1 calibration block

1 certificate

1 block case

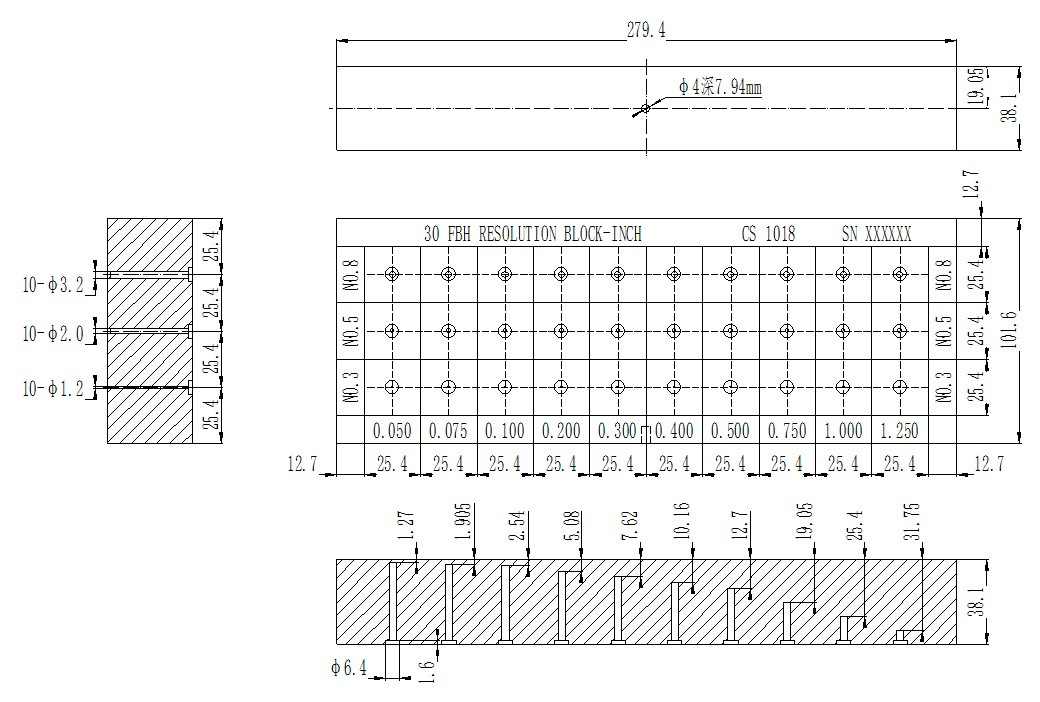

The drawing:

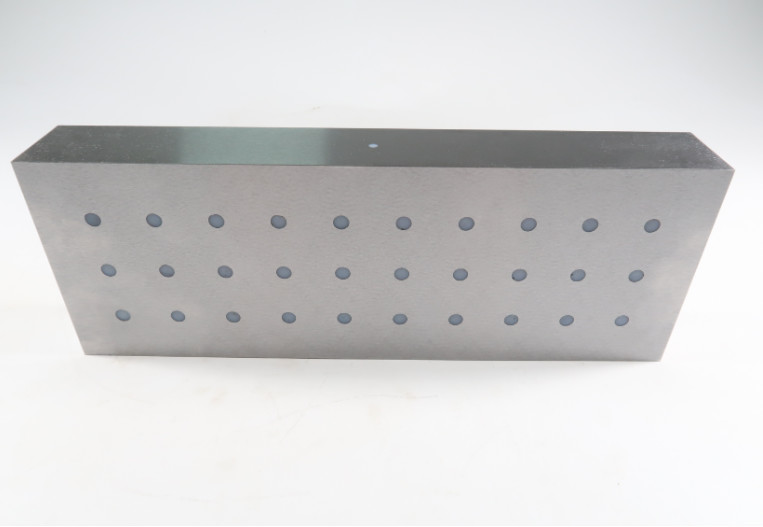

Ndt 30 Fbh Resolution Block Inch 1018 Carbon Steel Images
